MotionPlayerState

PlayerState class that owns the AbilitySystemComponent for persistent GAS integration across respawns in multiplayer. Implements IAbilitySystemInterface and provides comprehensive ASC lifecycle management with Motion system integration.

CRITICAL SETUP REQUIRED

MotionPlayerState requires manual initialization from your Character class. Without calling InitializeAbilitySystem(this) from your Character's BeginPlay or PossessedBy, Motion components will not function. See Manual Initialization Examples below.

This requirement will hopefully be dropped in the future, once more feedback has been collected!

Requirements

• GameMode with PlayerStateClass set to AMotionPlayerState
• Gameplay Ability System plugin enabled
• Networked multiplayer setup (works in single-player too)
• Manual initialization required from Character class
• Included Components:
  • AbilitySystemComponent (owned and replicated)
  • MotionAttributeSet (created with default values)
  • Avatar actor management for character possession
  • Delegate system for component synchronization

Installation

1. Open your GameMode Blueprint or C++ class
2. Set PlayerStateClass to AMotionPlayerState::StaticClass()
3. The PlayerState will be automatically created for each player

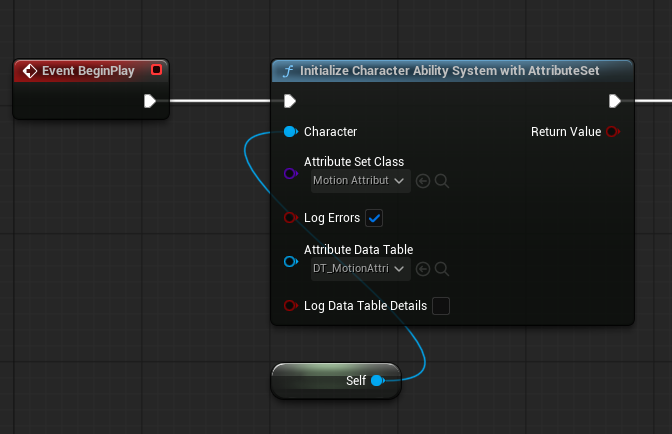

4. IMPORTANT: Add manual initialization to your Character class:

   // In Character's BeginPlay() or PossessedBy()
   if (AMotionPlayerState* MotionPS = GetPlayerState<AMotionPlayerState>())
   {
       MotionPS->InitializeAbilitySystem(this);
   }

5. Motion components will then find and use the initialized ASC
6. Without step 4, Motion components will not work

Functionality

MotionPlayerState manages the AbilitySystemComponent lifecycle and ensures persistence across character respawns.

Player State Initialization Flow

Network Synchronization Flow

Virtual Functions

Core PlayerState Functions

Function	Parameters	Return Type	Description
PostInitializeComponents()	None	void	Override to add additional components or setup
BeginPlay()	None	void	Override to setup initial state and load player data
GetLifetimeReplicatedProps()	TArray<FLifetimeProperty>& OutLifetimeProps	void	Configure replication properties for networking

Ability System Interface Functions

Function	Parameters	Return Type	Description
GetAbilitySystemComponent()	None	UAbilitySystemComponent*	Get the owned AbilitySystemComponent (implements IAbilitySystemInterface)
InitializeAbilitySystem()	AActor* InAvatarActor	void	Initialize the ASC with specified avatar actor (typically the character)

Blueprint Events

Event	Parameters	Description
OnAbilitySystemInitialized	UAbilitySystemComponent* AbilitySystemComponent	Fired when ASC is initialized and ready for use

Configuration Properties

Core Components

Property	Type	Replication	Description
AbilitySystemComponent	UAbilitySystemComponent*	Replicated	The owned ASC instance (auto-created in constructor)
AvatarActor	AActor*	Local	Cached reference to the avatar actor (typically the character)

Blueprint Events

Property	Type	Description
OnAbilitySystemInitialized	FOnAbilitySystemInitialized	Dynamic multicast delegate fired when ASC is ready

Read-Only State Properties

Initialization State

Property	Type	Description
Avatar Actor	AActor*	Current character using this ASC
ASC Initialized	bool	Whether the ASC has been initialized with an avatar
Motion Attribute Set	UMotionAttributeSet*	Auto-created attribute set with default values

GameMode Setup

// C++ GameMode
AMyGameMode::AMyGameMode()
{
    PlayerStateClass = AMotionPlayerState::StaticClass();
}

// Blueprint GameMode
Class Defaults → Player State Class → MotionPlayerState

ASC Initialization Flow

1. PlayerState Created - When player joins game
2. ASC Component Created - In constructor with MotionAttributeSet
3. Character Spawns - Character class created and possessed
4. IMPORTANT: - Character must call InitializeAbilitySystem(this)
5. ASC Initialized with Avatar - Character becomes avatar actor
6. Fire Delegate - Notify Motion components via OnAbilitySystemInitialized
7. Components Bind - Motion components connect to initialized ASC

Persistence Across Respawns

The PlayerState pattern ensures:

• Attributes persist through death
• Abilities remain available
• Effects continue or pause appropriately
• No data loss on respawn

Advanced Features

Multiplayer and Networking

Replication Strategy

// Automatic replication setup in GetLifetimeReplicatedProps
void AMotionPlayerState::GetLifetimeReplicatedProps(TArray<FLifetimeProperty>& OutLifetimeProps) const
{
    Super::GetLifetimeReplicatedProps(OutLifetimeProps);

    // AbilitySystemComponent is replicated to all clients
    DOREPLIFETIME(AMotionPlayerState, AbilitySystemComponent);
}

Authority and Prediction

• Server Authority: All gameplay effects and ability activations validated on server
• Client Prediction: Immediate response with server correction
• Rollback Support: Automatic correction for mispredicted actions
• Persistence: PlayerState survives character death/respawn

Network Optimization Features

• Efficient Delta Compression: Only changed attributes replicated
• Attribute Caching: Client-side caching for performance
• Conditional Replication: Relevancy-based attribute updates
• Bandwidth Management: Configurable replication frequency

ASC Lifecycle Management

Component Integration Pattern

Motion components use a sophisticated binding pattern that handles both immediate and delayed initialization:

// ASC discovery in Motion components (handles manual initialization timing)
void UMotionComponent::BeginPlay()
{
    Super::BeginPlay();

    // Try immediate binding (if Character already called InitializeAbilitySystem)
    if (AMotionPlayerState* PS = GetPlayerState<AMotionPlayerState>())
    {
        if (UAbilitySystemComponent* ASC = PS->GetAbilitySystemComponent())
        {
            if (ASC->GetAvatarActor()) // Check if manually initialized
            {
                BindToAbilitySystem(ASC);
                return;
            }
        }

        // Wait for manual initialization via delegate
        // This fires when Character calls InitializeAbilitySystem()
        PS->OnAbilitySystemInitialized.AddDynamic(this, &UMotionComponent::OnAbilitySystemReady);
    }
}

Integration with Motion Components

Motion components handle ASC integration gracefully:

1. Find MotionPlayerState via character
2. Access AbilitySystemComponent (created automatically)
3. Check if ASC is initialized (requires manual InitializeAbilitySystem() call)
4. If not initialized, register for OnAbilitySystemInitialized delegate
5. When delegate fires, bind to ASC and apply gameplay effects
6. Monitor attribute changes during gameplay

Requirements: Character must call MotionPlayerState->InitializeAbilitySystem(this) for components to function.

Common Usage Patterns

Accessing the ASC

// From Character
AMotionPlayerState* PS = GetPlayerState<AMotionPlayerState>();
UAbilitySystemComponent* ASC = PS->GetAbilitySystemComponent();

// Via Interface
IAbilitySystemInterface* ASI = Cast<IAbilitySystemInterface>(PlayerState);
UAbilitySystemComponent* ASC = ASI->GetAbilitySystemComponent();

Listening for Initialization

// Bind to delegate
PlayerState->OnAbilitySystemInitialized.AddDynamic(this, &AMyClass::OnASCReady);

// Handler
void AMyClass::OnASCReady(UAbilitySystemComponent* ASC)
{
    // ASC is now initialized with avatar
}

Blueprint Access

Get Ability System Component
├── Target: Motion Player State
└── Return: Ability System Component

Event On Ability System Initialized
├── Ability System Component (output)
└── [Your initialization logic]

Debugging and Troubleshooting

Console Commands

Enable comprehensive logging for debugging:

# Motion system logging
log LogMotionPlayer Verbose
log LogMotionCore Verbose

# Ability system logging
log LogAbilitySystem Verbose
log LogGameplayEffects Verbose
log LogGameplayTags Verbose

# Attribute debugging
showdebug abilitysystem

Common Issues and Solutions

ASC Not Initialized (Most Common)

Problem: Motion components waiting indefinitely, no gameplay effects working
Symptoms: Components show "waiting for ASC" in logs, attributes don't sync
Solution:

// Add manual initialization to your Character class
void AMyCharacter::BeginPlay()
{
    Super::BeginPlay();

    // CRITICAL: This call is required for Motion to work
    if (AMotionPlayerState* MotionPS = GetPlayerState<AMotionPlayerState>())
    {
        MotionPS->InitializeAbilitySystem(this);
    }
}

ASC Not Found

Problem: Motion components can't find AbilitySystemComponent
Solution:

// Verify GameMode configuration
AMyGameMode::AMyGameMode()
{
    PlayerStateClass = AMotionPlayerState::StaticClass(); // Must be set
}

Attributes Not Syncing

Problem: Attribute changes not replicating to clients
Solutions:

• Verify server authority for all gameplay effect applications
• Ensure InitializeAbilitySystem() was called on server
• Check network relevancy settings
• Ensure proper OnRep function implementation

Components Not Binding

Problem: Motion components not connecting to ASC
Solutions:

• Check manual initialization: Ensure Character calls InitializeAbilitySystem()
• Check initialization timing in BeginPlay vs PossessedBy
• Verify delegate binding for late initialization
• Ensure character has MotionPlayerState reference

### Debugging Blueprint Nodes
```blueprint
# Check PlayerState type
Get Player State → Cast to Motion Player State

# Verify ASC initialization
Event On Ability System Initialized → Print String ("ASC Ready")

# Monitor attribute changes
Event On Attribute Changed → Print String (Attribute Name + New Value)
