MotionCameraComponent

The Camera Component provides first-person camera control with procedural animations. It handles height transitions, curve-based effects, and view angle constraints.

Requirements

Character with standard UCapsuleComponent
UMotionCameraEventBus component on the same character (for receiving effect events)
MotionPlayerState configured in GameMode (for GAS tag checks)
Gameplay Tags (optional):
- Motion.Camera.DisableShake - Disables camera effects when present
Component Dependencies:
- Automatically caches owning Character, CapsuleComponent, and PlayerCameraManager
- Automatically subscribes to UMotionCameraEventBus for effect events
- Works with any ACharacter subclass

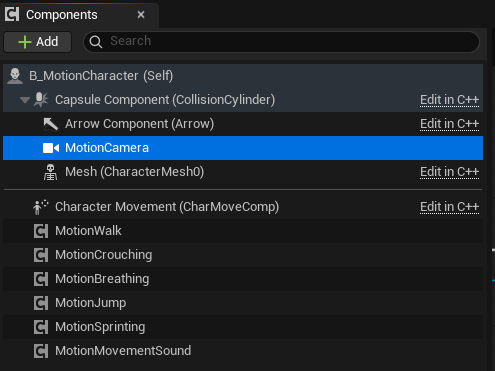

Installation

Add UMotionCameraEventBus to your Character Blueprint or C++ class
Add UMotionCameraComponent to your Character Blueprint or C++ class
Position the camera at eye level relative to the character mesh
Configure standing and crouched camera heights
Set view angle constraints for first-person gameplay
Configure camera target offset curve for pitch-based adjustments
The component will automatically detect and cache owner references
The camera automatically subscribes to the Event Bus to receive effects from Motion components

Core Functionality

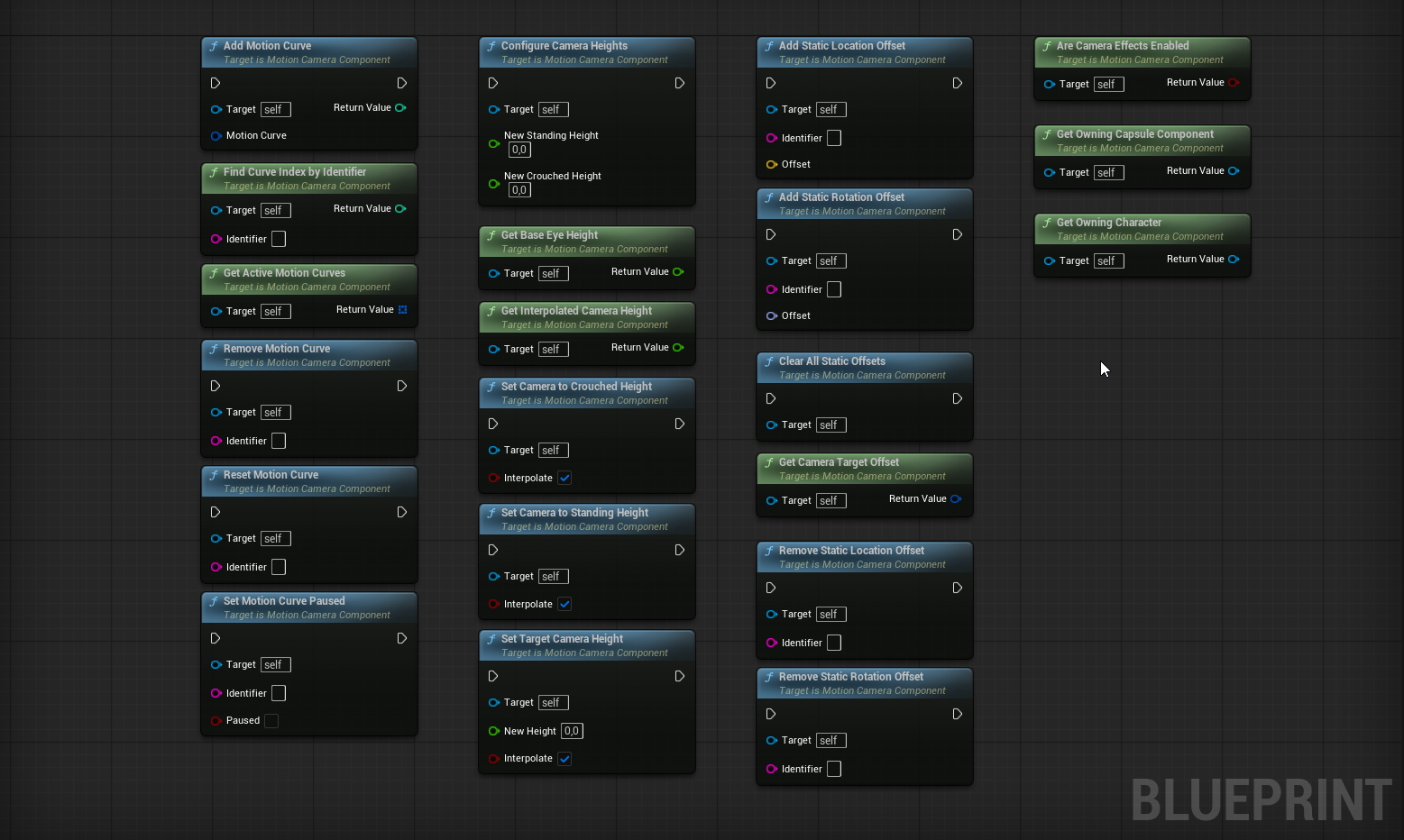

Functions

Core Camera Functions

Function	Parameters	Return Type	Description
`AreCameraEffectsEnabled()`	None	`bool`	Check if camera effects are enabled (checks Motion.Camera.DisableShake tag)
`GetOwningCharacter()`	None	`ACharacter*`	Get the owning character (cached reference)
`GetOwningCapsuleComponent()`	None	`UCapsuleComponent*`	Get the owning capsule component (cached reference)

Camera Height Management

Function	Parameters	Return Type	Description
`SetTargetCameraHeight()`	`float NewHeight, bool bInterpolate = true`	`void`	Set target camera height with optional interpolation
`GetInterpolatedCameraHeight()`	None	`float`	Get current interpolated camera height
`UpdateCameraHeight()`	`float DeltaTime`	`void`	Update camera height interpolation (called each frame)
`SetCameraToStandingHeight()`	`bool bInterpolate = true`	`void`	Set camera to standing height
`SetCameraToCrouchedHeight()`	`bool bInterpolate = true`	`void`	Set camera to crouched height
`ConfigureCameraHeights()`	`float NewStandingHeight, float NewCrouchedHeight`	`void`	Configure camera heights for standing and crouched positions
`GetBaseEyeHeight()`	None	`float`	Get the base eye height offset

Curve Management System

Function	Parameters	Return Type	Description
`AddMotionCurve()`	`const FMotionCurve& MotionCurve`	`int32`	Add a motion curve for camera effects
`RemoveMotionCurve()`	`const FString& Identifier`	`void`	Remove a motion curve by identifier
`SetMotionCurvePaused()`	`const FString& Identifier, bool bPaused`	`void`	Pause or unpause a motion curve
`ResetMotionCurve()`	`const FString& Identifier`	`void`	Reset a motion curve to its starting position
`GetActiveMotionCurves()`	None	`const TArray<FMotionCurve>&`	Get all active motion curves
`FindCurveIndexByIdentifier()`	`const FString& Identifier`	`int32`	Find a curve by its identifier

Static Offset System

Function	Parameters	Return Type	Description
`AddStaticLocationOffset()`	`const FString& Identifier, const FVector& Offset`	`void`	Add a static location offset that persists until removed
`AddStaticRotationOffset()`	`const FString& Identifier, const FRotator& Offset`	`void`	Add a static rotation offset that persists until removed
`RemoveStaticLocationOffset()`	`const FString& Identifier`	`void`	Remove a static location offset
`RemoveStaticRotationOffset()`	`const FString& Identifier`	`void`	Remove a static rotation offset
`ClearAllStaticOffsets()`	None	`void`	Clear all static offsets
`GetCameraTargetOffset()`	None	`const FRuntimeVectorCurve&`	Get the camera target offset curve for external calculations

Internal Processing Functions

Function	Parameters	Return Type	Description
`UpdateMotionCurves()`	`float DeltaTime`	`void`	Update all active motion curves
`CalculateCurveTransforms()`	None	`void`	Calculate the combined transform from all active curves
`GetCombinedStaticLocationOffset()`	None	`FVector`	Get the combined location offset from all static offsets
`GetCombinedStaticRotationOffset()`	None	`FRotator`	Get the combined rotation offset from all static offsets
`PrintDebugInformation()`	None	`void`	Print debug information if enabled

Event Bus Handlers

Function	Parameters	Return Type	Description
`HandleCurveEvent()`	`const FMotionCurve& Curve, EMotionCameraAction Action`	`void`	Handle curve events from the event bus (Add, Remove, Pause, Resume)
`HandleHeightEvent()`	`float Height, bool bInterpolate`	`void`	Handle height events from the event bus (crouch transitions)
`SubscribeToEventBus()`	None	`void`	Subscribe to the camera event bus (called automatically in BeginPlay)

Overridden Camera Functions

Function	Parameters	Return Type	Description
`GetCameraView()`	`float DeltaTime, FMinimalViewInfo& DesiredView`	`void`	Override camera view calculation with Motion enhancements
`GetEditorPreviewInfo()`	`float DeltaTime, FMinimalViewInfo& ViewOut`	`bool`	Editor preview information with debug visualization

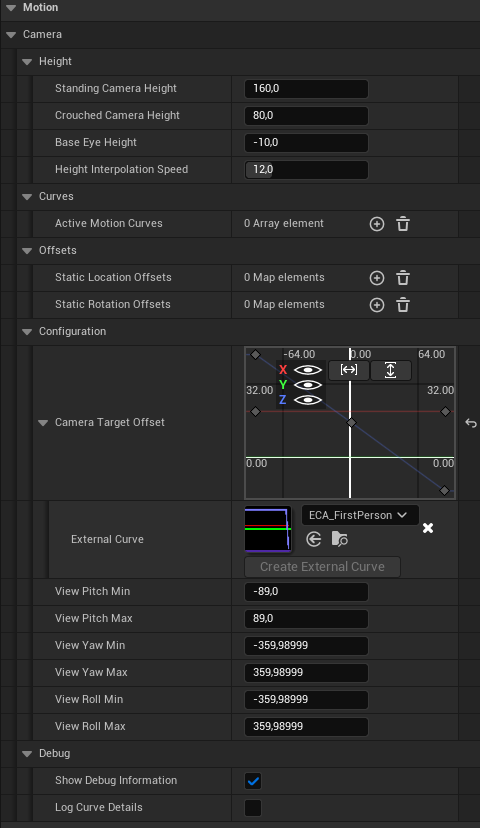

Configuration Properties

Camera Height Configuration

Property	Type	Default	Range	Description
StandingCameraHeight	`float`	`160.0f`	-	Camera height when character is standing
CrouchedCameraHeight	`float`	`80.0f`	-	Camera height when character is crouched
BaseEyeHeight	`float`	`-10.0f`	-	Base eye height offset from capsule top
HeightInterpolationSpeed	`float`	`12.0f`	`0.1 - 50.0`	Speed of camera height interpolation

View Angle Constraints

Property	Type	Default	Description
ViewPitchMin	`float`	`-89.0f`	Minimum pitch angle (looking down)
ViewPitchMax	`float`	`89.0f`	Maximum pitch angle (looking up)
ViewYawMin	`float`	`-359.99f`	Minimum yaw angle
ViewYawMax	`float`	`359.99f`	Maximum yaw angle
ViewRollMin	`float`	`-359.99f`	Minimum roll angle
ViewRollMax	`float`	`359.99f`	Maximum roll angle

Camera Target Configuration

Property	Type	Description
CameraTargetOffset	`FRuntimeVectorCurve`	Camera target offset based on pitch angle

Debug Configuration

Property	Type	Default	Description
bShowDebugInformation	`bool`	`true`	Whether to display debug information on screen and in logs
bLogCurveDetails	`bool`	`false`	Whether to log detailed curve information (performance intensive)

Read-Only State Properties

Cached References

Property	Type	Description
OwningCharacter	`ACharacter*`	Owning character (cached for performance)
OwningCapsuleComponent	`UCapsuleComponent*`	Owning capsule component (cached for performance)
OwningPlayerCameraManager	`APlayerCameraManager*`	Owning player camera manager (cached for performance)
CachedEventBus	`UMotionCameraEventBus*`	Cached reference to the camera event bus
CachedAbilitySystemComponent	`UAbilitySystemComponent*`	Cached reference to the ability system component
DefaultCapsuleHalfHeight	`float`	Default capsule half height (cached for performance)

Camera Height State

Property	Type	Description
CurrentCameraHeight	`float`	Current interpolated camera height (independent of capsule)
TargetCameraHeight	`float`	Target camera height for interpolation
bIsInterpolatingHeight	`bool`	Whether camera height is currently interpolating

Curve and Offset State

Property	Type	Description
ActiveMotionCurves	`TArray<FMotionCurve>`	All active motion curves affecting the camera
StaticLocationOffsets	`TMap<FString, FVector>`	Static location offsets that persist until manually removed
StaticRotationOffsets	`TMap<FString, FRotator>`	Static rotation offsets that persist until manually removed
CameraLocationFromCurves	`FVector`	Combined location offset from all active curves
CameraRotationFromCurves	`FRotator`	Combined rotation offset from all active curves

Motion Curves

Motion curves define procedural camera animations with full control over translation and rotation:

cpp

FMotionCurve CurveData;
CurveData.Identifier = "WalkBob";
CurveData.TranslationCurve = LoadObject<UCurveVector>(...);
CurveData.RotationCurve = LoadObject<UCurveVector>(...);
CurveData.Duration = 1.0f;
CurveData.PlayRate = 1.0f;
CurveData.bLoop = true;
CurveData.bStartPaused = false;

int32 CurveIndex = CameraComponent->AddMotionCurve(CurveData);

// Runtime control
CameraComponent->SetMotionCurvePaused("WalkBob", true);
CameraComponent->ResetMotionCurve("WalkBob");
CameraComponent->RemoveMotionCurve("WalkBob");

Curve Properties

Identifier - Unique string ID for the curve
TranslationCurve - XYZ position offsets over time
RotationCurve - Pitch/Yaw/Roll offsets over time
Duration - Total curve duration in seconds
PlayRate - Playback speed multiplier
bLoop - Whether curve repeats
bStartPaused - Start in paused state
CurrentTime - Current playback time (automatically managed)
bIsPaused - Current pause state

Static Offset System

Static offsets provide persistent camera adjustments that remain until explicitly removed:

cpp

// Add weapon ADS offset
CameraComponent->AddStaticLocationOffset("ADS", FVector(10, 5, -2));
CameraComponent->AddStaticRotationOffset("ADS", FRotator(-2, 0, 0));

// Multiple offsets can be active simultaneously
CameraComponent->AddStaticLocationOffset("Lean", FVector(0, 15, 0));
CameraComponent->AddStaticLocationOffset("Breathing", FVector(0, 0, 1));

// Remove specific offsets
CameraComponent->RemoveStaticLocationOffset("ADS");
CameraComponent->RemoveStaticRotationOffset("ADS");

// Clear all offsets at once
CameraComponent->ClearAllStaticOffsets();

// Query combined offsets
FVector CombinedLocation = CameraComponent->GetCombinedStaticLocationOffset();
FRotator CombinedRotation = CameraComponent->GetCombinedStaticRotationOffset();

Offset Processing

Additive: All static offsets are added together
Persistent: Remain active until explicitly removed
Named: Each offset identified by unique string
Independent: Location and rotation offsets managed separately

Camera Height Management

The component provides independent camera height tracking with smooth interpolation:

cpp

// Standard height transitions
CameraComponent->SetCameraToStandingHeight(true);  // Interpolated
CameraComponent->SetCameraToCrouchedHeight(true);   // Interpolated

// Custom height with interpolation control
CameraComponent->SetTargetCameraHeight(50.0f, true);   // Smooth transition
CameraComponent->SetTargetCameraHeight(120.0f, false); // Instant change

// Configure base heights
CameraComponent->ConfigureCameraHeights(180.0f, 90.0f); // Standing, Crouched

// Query current state
float CurrentHeight = CameraComponent->GetInterpolatedCameraHeight();
float BaseEyeHeight = CameraComponent->GetBaseEyeHeight();
bool IsInterpolating = CameraComponent->bIsInterpolatingHeight;

Height System Features

Independent Tracking: Camera height separate from capsule height
Smooth Interpolation: Configurable interpolation speed
State Awareness: Tracks interpolation progress
Base Eye Height: Offset from capsule top for fine-tuning

Advanced Features

View Angle Constraints

Comprehensive view angle clamping system:

cpp

// Configure view limits
CameraComponent->ViewPitchMin = -80.0f;   // Limit looking down
CameraComponent->ViewPitchMax = 80.0f;    // Limit looking up
CameraComponent->ViewYawMin = -180.0f;    // Limit left turn
CameraComponent->ViewYawMax = 180.0f;     // Limit right turn
CameraComponent->ViewRollMin = -45.0f;    // Limit left roll
CameraComponent->ViewRollMax = 45.0f;     // Limit right roll

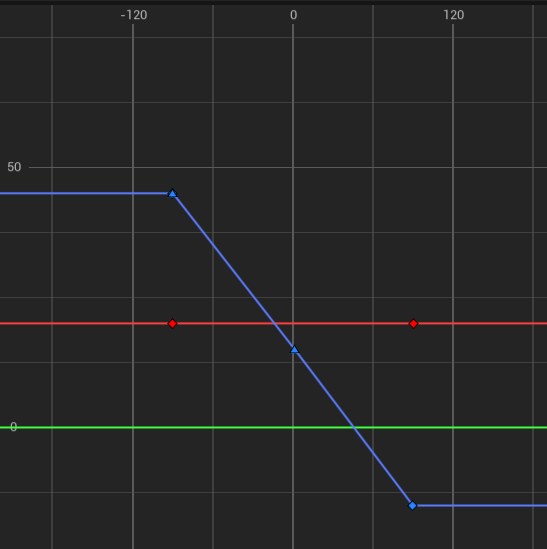

Camera Target Offset Curve

Pitch-based camera targeting adjustments:

cpp

// Configure pitch-based offset curve
FRuntimeVectorCurve& TargetOffset = CameraComponent->CameraTargetOffset;
TargetOffset.GetRichCurveConst(0)->AddKey(-90.0f, 10.0f);  // Looking down
TargetOffset.GetRichCurveConst(0)->AddKey(0.0f, 0.0f);     // Level
TargetOffset.GetRichCurveConst(0)->AddKey(90.0f, -10.0f);  // Looking up

Or define as a curve asset in the editor.

Integration with Motion Components

Motion components communicate with the camera through the Camera Event Bus pattern:

Event Types:

Event	Source Components	Effect
`OnMotionCurveEvent`	Walk, Sprint, Jump, Breathing	Camera shake, bob, breathing effects
`OnCameraHeightEvent`	Crouch	Camera height transitions

Component Effects:

Walk Component - Broadcasts subtle walking bob curves
Sprint Component - Broadcasts sprint shake curve with speed modulation
Jump Component - Broadcasts jump takeoff and landing camera effects
Crouch Component - Broadcasts height transition events
Breathing Component - Broadcasts idle breathing camera motion

Processing Priority System

When multiple effects are active:

Motion Curves: All curves contribute additively
Static Offsets: Applied after curve processing
Height Interpolation: Applied to final position
View Angle Clamping: Final transform validation

Camera Effects Control

Camera effects can be controlled via multiple methods:

cpp

// Gameplay tag control (automatic)
bool EffectsEnabled = CameraComponent->AreCameraEffectsEnabled();
// Checks for Motion.Camera.DisableShake tag on ASC

// Individual curve control
CameraComponent->SetMotionCurvePaused("WalkBob", true);
CameraComponent->RemoveMotionCurve("SprintShake");

// Global debug toggle
CameraComponent->bShowDebugInformation = false;

Custom Camera Integration

If you prefer to use your own camera system instead of UMotionCameraComponent, you can subscribe to the Camera Event Bus to receive effect events from Motion components.

Subscribing to the Event Bus

cpp

// In your custom camera component's BeginPlay:
void UMyCustomCamera::BeginPlay()
{
    Super::BeginPlay();

    // Find the event bus on the owning character
    if (AActor* Owner = GetOwner())
    {
        UMotionCameraEventBus* EventBus = Owner->FindComponentByClass<UMotionCameraEventBus>();
        if (EventBus)
        {
            // Subscribe to curve events (camera shake, bob, breathing)
            EventBus->OnMotionCurveEvent.AddDynamic(this, &UMyCustomCamera::HandleCurveEvent);

            // Subscribe to height events (crouch transitions)
            EventBus->OnCameraHeightEvent.AddDynamic(this, &UMyCustomCamera::HandleHeightEvent);
        }
    }
}

Implementing Event Handlers

cpp

UFUNCTION()
void UMyCustomCamera::HandleCurveEvent(const FMotionCurve& Curve, EMotionCameraAction Action)
{
    // Only process for locally controlled characters
    if (ACharacter* Character = Cast<ACharacter>(GetOwner()))
    {
        if (!Character->IsLocallyControlled())
            return;
    }

    switch (Action)
    {
        case EMotionCameraAction::Add:
            // Start playing the curve effect
            AddMyCurveEffect(Curve);
            break;

        case EMotionCameraAction::Remove:
            // Stop and remove the curve by identifier
            RemoveMyCurveEffect(Curve.Identifier);
            break;

        case EMotionCameraAction::Pause:
            // Pause the curve
            PauseMyCurveEffect(Curve.Identifier);
            break;

        case EMotionCameraAction::Resume:
            // Resume the curve
            ResumeMyCurveEffect(Curve.Identifier);
            break;
    }
}

UFUNCTION()
void UMyCustomCamera::HandleHeightEvent(float TargetHeight, bool bInterpolate)
{
    // Only process for locally controlled characters
    if (ACharacter* Character = Cast<ACharacter>(GetOwner()))
    {
        if (!Character->IsLocallyControlled())
            return;
    }

    // Apply your own height transition logic
    SetMyCameraHeight(TargetHeight, bInterpolate);
}

Event Actions

Action	Description
`EMotionCameraAction::Add`	Start playing a new curve effect
`EMotionCameraAction::Remove`	Stop and remove a curve by its identifier
`EMotionCameraAction::Pause`	Pause a curve (keeps its position)
`EMotionCameraAction::Resume`	Resume a paused curve

FMotionCurve Properties

When handling curve events, you'll receive an FMotionCurve with these key properties:

Property	Type	Description
`Identifier`	`FString`	Unique identifier for the curve
`CurveVector`	`FRuntimeVectorCurve`	The actual curve data (XYZ = rotation, or translation)
`Tickrate`	`float`	Playback speed multiplier
`Multiplier`	`float`	Amplitude multiplier
`bShouldLoop`	`bool`	Whether the curve should loop
`bShouldReverse`	`bool`	Whether to reverse at the end
`ActiveSeconds`	`float`	Current playback time
`bIsPaused`	`bool`	Current pause state

This decoupled architecture allows you to use any camera system while still benefiting from the movement effects provided by Motion components.

MotionCameraComponent ​

Requirements ​

Installation ​

Core Functionality ​

Functions ​

Core Camera Functions ​

Camera Height Management ​

Curve Management System ​

Static Offset System ​

Internal Processing Functions ​

Event Bus Handlers ​

Overridden Camera Functions ​

Configuration Properties ​

Camera Height Configuration ​

View Angle Constraints ​

Camera Target Configuration ​

Debug Configuration ​

Read-Only State Properties ​

Cached References ​

Camera Height State ​

Curve and Offset State ​

Motion Curves ​

Curve Properties ​

Static Offset System ​

Offset Processing ​

Camera Height Management ​

Height System Features ​

Advanced Features ​

View Angle Constraints ​

Camera Target Offset Curve ​

Integration with Motion Components ​

Processing Priority System ​

Camera Effects Control ​

Custom Camera Integration ​

Subscribing to the Event Bus ​

Implementing Event Handlers ​

Event Actions ​

FMotionCurve Properties ​

MotionCameraComponent

Requirements

Installation

Core Functionality

Functions

Core Camera Functions

Camera Height Management

Curve Management System

Static Offset System

Internal Processing Functions

Event Bus Handlers

Overridden Camera Functions

Configuration Properties

Camera Height Configuration

View Angle Constraints

Camera Target Configuration

Debug Configuration

Read-Only State Properties

Cached References

Camera Height State

Curve and Offset State

Motion Curves

Curve Properties

Static Offset System

Offset Processing

Camera Height Management

Height System Features

Advanced Features

View Angle Constraints

Camera Target Offset Curve

Integration with Motion Components

Processing Priority System

Camera Effects Control

Custom Camera Integration

Subscribing to the Event Bus

Implementing Event Handlers

Event Actions

FMotionCurve Properties
