MotionSprintingComponent

Manages sprint speed enhancement, stamina/endurance system, and camera effects during sprinting with full GAS integration. Provides input handling, state management, and networked multiplayer support.

Requirements

• Character with standard UCharacterMovementComponent
• MotionPlayerState configured in GameMode
• Gameplay Ability System (GAS) initialized
• Enhanced Input System configured
• Gameplay Effects:
  • GE_Motion_SprintSpeed - Modifies walk speed for sprinting
  • GE_Motion_SprintStaminiaDrain - Drains stamina while sprinting (optional)
  • GE_Motion_SprintStaminiaRegen - Regenerates stamina when not sprinting (optional)
  • GE_Motion_SprintStaminiaRegenDelay - Blocks regen after exhaustion (optional)
  • GE_Motion_WantsToSprint - Grants wants to sprint tag
  • GE_Motion_Sprinting - Grants sprinting state tag
• Gameplay Tags:
  • Motion.State.WantsToSprint - Player input to sprint
  • Motion.State.Sprinting - Active sprinting state
  • Attribute.Movement.WalkSpeed - Movement speed attribute
  • Attribute.Movement.Stamina - Stamina attribute (if using stamina)

Installation

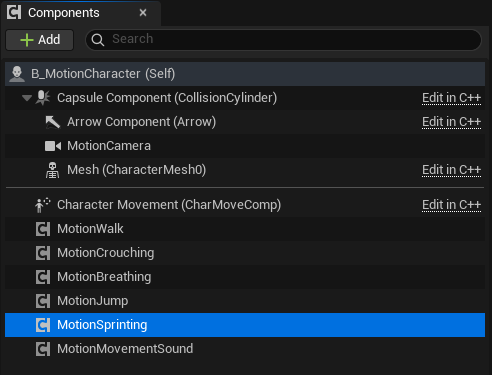

1. Add UMotionSprintingComponent to your Character Blueprint or C++ class
2. Configure the component properties in the Details panel
3. Set the SprintingTagEffect to GE_Motion_Sprinting
4. Set the WantsToSprintTagEffect to GE_Motion_WantsToSprint
5. Configure stamina effects if using stamina system:
   • Set SprintStaminaDrainEffect for stamina consumption
   • Set StaminaRegenEffect for recovery
   • Set StaminaRegenDelayEffect for exhaustion cooldown
6. Bind sprint input action in Enhanced Input or through component

Functionality

Core Sprint State Machine

Sprint Update Flow

Expandability

The MotionSprintingComponent provides extensive virtual functions for customization:

Core Sprint Functions

Function	Parameters	Returns	Use Case Examples
SetWantsToSprint()	bool bWantsToSprint	void	• Add cooldown timer • Check prerequisites
GetWantsToSprint()	None	bool	• Query sprint intent • UI state display
IsCurrentlySprinting()	None	bool	• Check active sprint • Animation triggers
CanStartSprinting()	None	bool	• Add custom conditions • Equipment checks

State Management Functions

Function	Parameters	Returns	Use Case Examples
UpdateSprintingState()	float DeltaTime	void	• Custom state logic • Add transitions
InitializeComponent()	None	void	• Additional setup • Cache references
HandleSprintInputStateChange()	bool bPressed	void	• Input processing • Toggle logic
PrintDebugInformation()	None	void	• Custom debug display • Performance metrics

Stamina System Functions

Function	Parameters	Returns	Use Case Examples
GetStaminaFromGAS()	None	float	• Custom attribute source • Apply modifiers
GetCurrentStamina()	None	float	• Normalized value • UI display
UpdateStamina()	float DeltaTime	void	• Custom drain rate • Conditional consumption
UpdateStaminaWithGameplayEffects()	float DeltaTime	void	• GAS integration • Effect management
OnStaminaAttributeChanged()	FOnAttributeChangeData&	void	• React to changes • Threshold checks
OnStaminaDepleted()	float CurrentValue	void	• Exhaustion logic • Apply penalties

Speed Modification Functions

Function	Parameters	Returns	Use Case Examples
ApplySprintSpeedModification()	None	void	• Apply speed boost • Stack with buffs
RemoveSprintSpeedModification()	None	void	• Remove speed boost • Clear effects
GetCurrentMovementSpeed()	None	float	• Query current speed • Calculate multipliers
IsActuallyMoving()	None	bool	• Check velocity • Validate movement

Camera Effect Functions

Function	Parameters	Returns	Use Case Examples
StartSprintCameraEffects()	None	void	• Apply camera shake • FOV changes
StopSprintCameraEffects()	None	void	• Remove effects • Smooth transition

Input System Functions

Function	Parameters	Returns	Use Case Examples
OnInputStarted()	FInputActionValue&	void	• Handle press • Buffer input
OnInputCompleted()	FInputActionValue&	void	• Handle release • Toggle mode
BindSprintInput()	UInputAction*	bool	• Bind to action • Setup input
BindSprintInputWithComponent()	UInputAction*, UEnhancedInputComponent*	bool	• Explicit binding • Custom component

Blueprint Events

Event	Parameters	Use Case Examples
OnSprintStateChanged	bool bIsSprinting	• Sound effects • Animation triggers
OnSprintStaminaDepleted	None	• Exhaustion VFX • Breathing sounds
OnStaminaFullyRecovered	None	• Recovery notification • Enable UI
OnStaminaChanged	float NewStamina, float MaxStamina	• Update stamina bar • Warning indicators

Network Functions

Function	Parameters	Returns	Use Case Examples
ServerRequestSprint()	bool bWantsToSprint	void (RPC)	• Server validation • Authority check

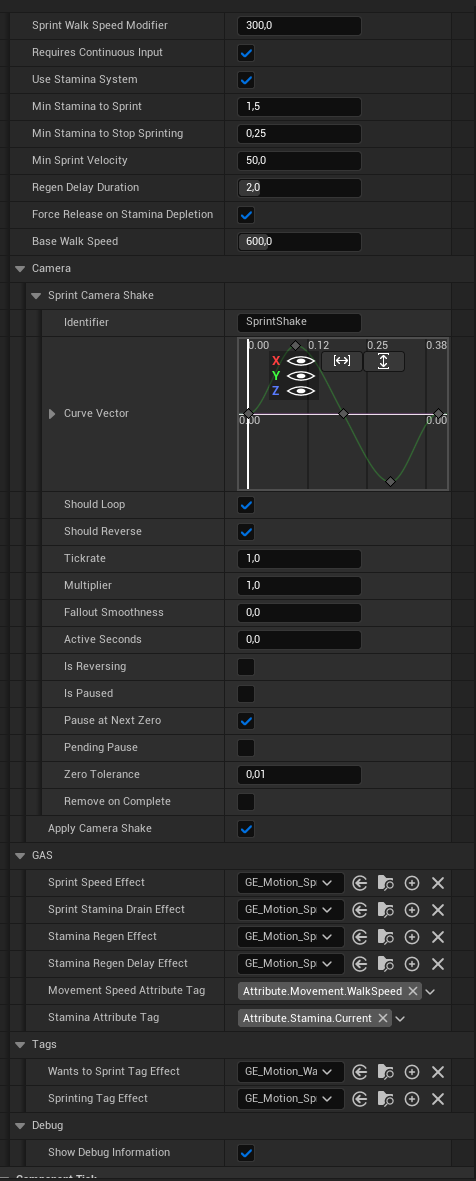

Configuration

Sprint Settings

Property	Type	Default	Description	Range
SprintWalkSpeedModifier	float	300.0	Absolute walk speed value to add when sprinting	-
bRequiresContinuousInput	bool	true	Whether sprinting requires holding input or is toggle	-
BaseWalkSpeed	float	600.0	Base walk speed for sprint multiplier calculations	100.0 - 2000.0

Stamina System

Property	Type	Default	Description	Range
bUseStaminaSystem	bool	false	Whether sprinting is limited by stamina	-
MinStaminaToSprint	float	1.5	Minimum stamina required to start sprinting (raw value)	-
MinStaminaToStopSprinting	float	0.25	Minimum stamina to continue (hysteresis)	-
MinSprintVelocity	float	50.0	Minimum velocity required to consume stamina	1.0+
RegenDelayDuration	float	2.0	Duration to block regen after exhaustion	0.0 - 10.0
bForceReleaseOnStaminaDepletion	bool	true	Force input release after depletion	-

Camera Effects

Property	Type	Default	Description	Range
SprintCameraShake	FStructMotionCurve	-	Camera shake curve during sprinting	-
bApplyCameraShake	bool	true	Whether to apply camera shake	-

GAS Integration

Property	Type	Description
SprintSpeedEffect	TSubclassOf<UGameplayEffect>	Effect for sprint speed modification
SprintStaminaDrainEffect	TSubclassOf<UGameplayEffect>	Effect for stamina drain
StaminaRegenEffect	TSubclassOf<UGameplayEffect>	Effect for stamina regeneration
StaminaRegenDelayEffect	TSubclassOf<UGameplayEffect>	Effect blocking regen after exhaustion
MovementSpeedAttributeTag	FGameplayTag	Tag for movement speed attribute (e.g., "Attribute.Movement.WalkSpeed")
StaminaAttributeTag	FGameplayTag	Tag for stamina attribute (e.g., "Attribute.Movement.Stamina")

Tag Effects

Property	Type	Description
WantsToSprintTagEffect	TSubclassOf<UGameplayEffect>	Grants wants to sprint tag
SprintingTagEffect	TSubclassOf<UGameplayEffect>	Grants sprinting state tag

State Tracking (Read-Only)

Property	Type	Description
SprintCameraShakeIdentifier	FString	Unique identifier for sprint camera shake
bIsLocallyPredicting	bool	Whether component is in local prediction state
LocalPredictedSpeed	float	Locally predicted speed value
LastLocalPredictionTime	double	Timestamp of last prediction change

Debug

Property	Type	Default	Description
bShowDebugInformation	bool	false	Debug information display

Input Binding

The component provides multiple ways to bind sprint input:

Blueprint Binding

// Simple binding with auto-discovery
BindSprintInput(SprintInputAction);

// Explicit component binding
BindSprintInputWithComponent(SprintAction, EnhancedInputComponent);

Manual Binding

// Get function names for custom binding
FName StartFunction = GetSprintStartedFunctionName();
FName CompleteFunction = GetSprintCompletedFunctionName();

Stamina System

Stamina Flow Diagram

Stamina Access

• GetCurrentStamina() - Returns normalized stamina (0.0 - 1.0)
• GetStaminaFromGAS() - Returns raw stamina value from GAS
• OnStaminaChanged event - Fires when stamina value changes
• OnStaminaFullyRecovered event - Fires when stamina reaches maximum

Local Prediction

Supports client-side prediction for responsive multiplayer:

Prediction API

• IsLocallyPredicting() - Check if in local prediction state
• GetLocalPredictedSpeed() - Get predicted speed value
• GetLastLocalPredictionTime() - Get timestamp of last prediction

Networking

The component handles multiplayer through:

• Server RPCs - ServerRequestSprint() for authoritative validation
• Client Prediction - Immediate local feedback
• GAS Replication - Automatic effect synchronization
• State Reconciliation - Smooth correction of mispredictions
